AweSun Smart IPKVM A2 Switch Remote Control 4K/8K USB3.0 PoE EDID RTC Dual PCs Monitors Over-IP IoT Industrial Server Stock
AweSun Smart IPKVM A2 Switch Remote Control 4K/8K USB3.0 PoE EDID RTC Dual PCs Monitors Over-IP IoT Industrial Server Stock
Regular price
$99.00 USD
Regular price
Sale price
$99.00 USD
Unit price
per
Get a Custom Quote for Bulk Orders
Get a Custom Quote for Bulk Orders
1. True Out-of-Band Remote Access with BIOS-Level Control
Access and operate your target computer even when the system is down or the network is unavailable. Supports BIOS, system installation, troubleshooting, and full out-of-band management without requiring any software on the controlled device.
2. Plug-and-Play Setup with Multiple Network Options
Simply connect via HDMI + USB to the target device and bind A2 through LAN, Wi-Fi, or a USB 4G dongle. No drivers or agents are required on the host machine, making deployment fast and effortless.
3. Clear and Smooth Remote Display
Provides up to 1080P high-definition screen capture through the HDMI input. Works seamlessly with the AweSun remote control platform for a stable, low-latency remote operation experience.
4. Compact and Deployment-Friendly Design
With a compact body (approx. 100 × 100 × 25.5 mm) and lightweight build, the A2 is easy to install in server racks, office desktops, machine rooms, and other unattended environments.
5. Versatile I/O Interface for Expanded Usage

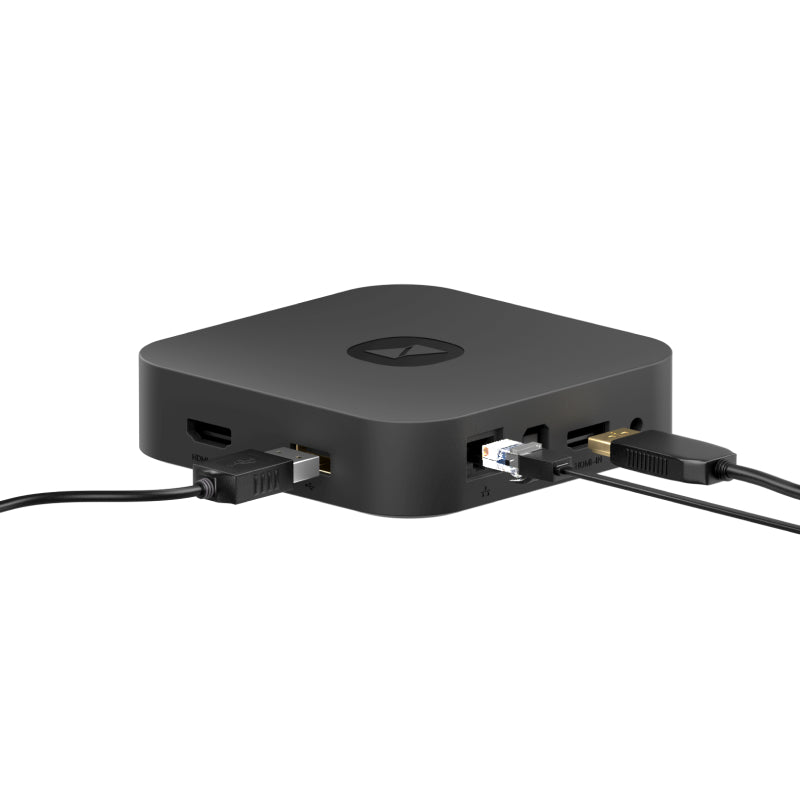

Equipped with HDMI input/output, USB-B control port, RJ45 Ethernet, and USB-A extension for 4G dongles or supported peripherals. Designed to cover diverse IT maintenance and remote management scenarios.

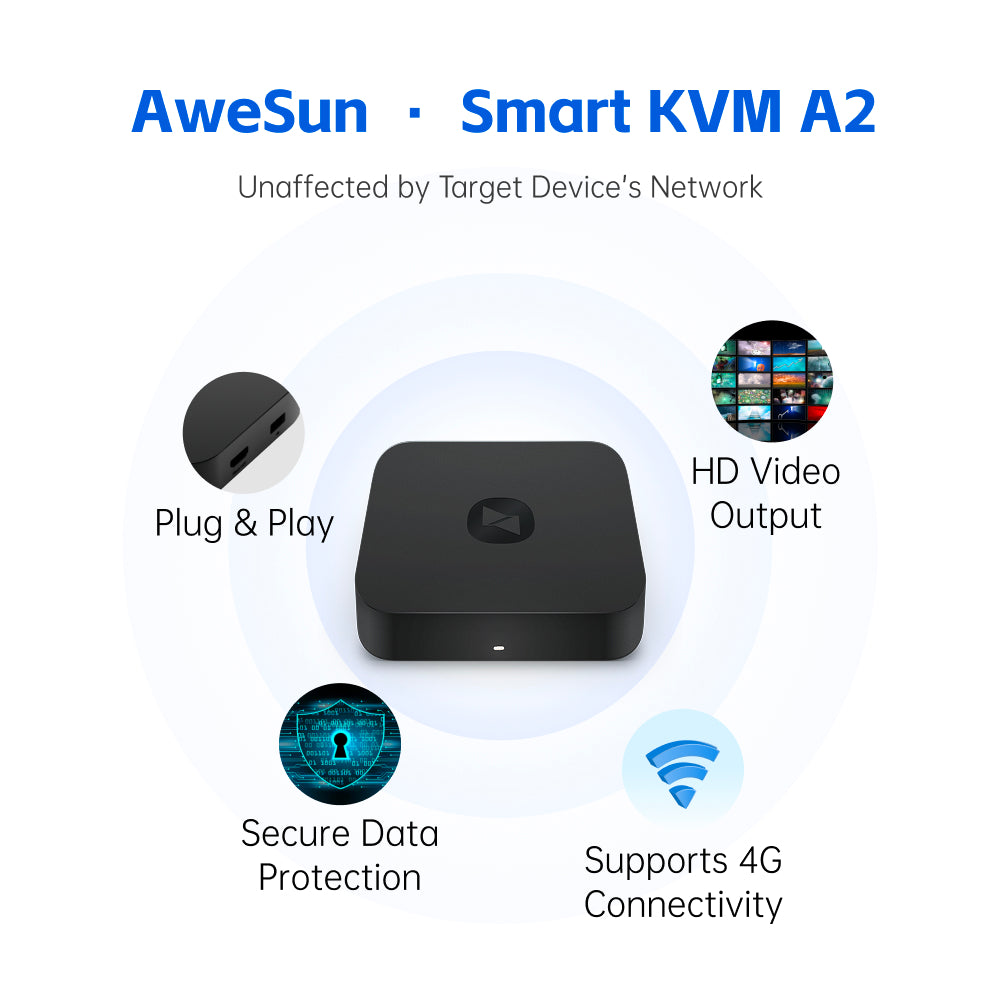

AweSun Smart IPKVM A2 Remote Control
Products Description
|
Product Name
|
AweSun Remote Control Smart KVM Over IP PoE HD-MI-comaptible Video Loop Through PiKVM RTC Video Capture for Remote Server
|
|
Application
|
Offline Remote Control;
Medical Equipment Maintenance;
Industrial Device Monitoring;
Data Center Maintenance;
Remote OS Reinstallation;
Secure Offline Remote IT Development.
|
|
Model Number
|
AweSun Smart KVM A2
|
|
Material
|
Engineering Plastic
|
|
Ethernet Port
|
1x 100M RJ45 WAN Port
|
|
LED Indicator
|
System status LED
|
|
Size
|
10*10*2.55cm (3.94*3.94*1 inch)
|
|
Power Supply
|
12V- 1A
|
|
Resolution
|
30~60Hz, Up to 1920x1080
|
|
Wireless Standards
|
2.4GHz IEEE 802.11 b/g/n
|
|
Wired Standards
|
IEEE 802.3 / 802.3u
|
|
Frequency Band
|
2.412GHz - 2.483GHz (CN)
|
|
4G Modem Support
|
Huawei E8372h-155, ZTE MF79U, AweSeed X4U
|
|
Operating Temperature
|
0~40°C (32~104℉)
|
|
Storage Temperature
|
-40~70°C (-40~158℉)
|
|
Operating Humidity
|
10% - 90% RH (non-condensing)
|
|
Storage Humidity
|
5% - 90% RH (non-condensing)
|
|
Working humidity&Temperature
|
20-70°C 10%-90% RH (non-condensing)
|
|
Storage humidity&Temperature
|
-40-85°C 5%-90%RH (non-condensing)
|
|
Packing List
|
Smart KVM A2 x1 12V-1A
Power Adapter x1 ((12V-1A DC3.5*1.35MM))
USB-B Cable x1
User Manual x1
|
|
Warranty
|
1 Year
|

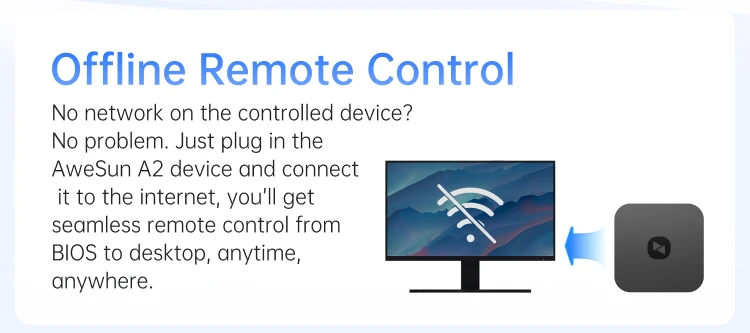

Offline Remote Control

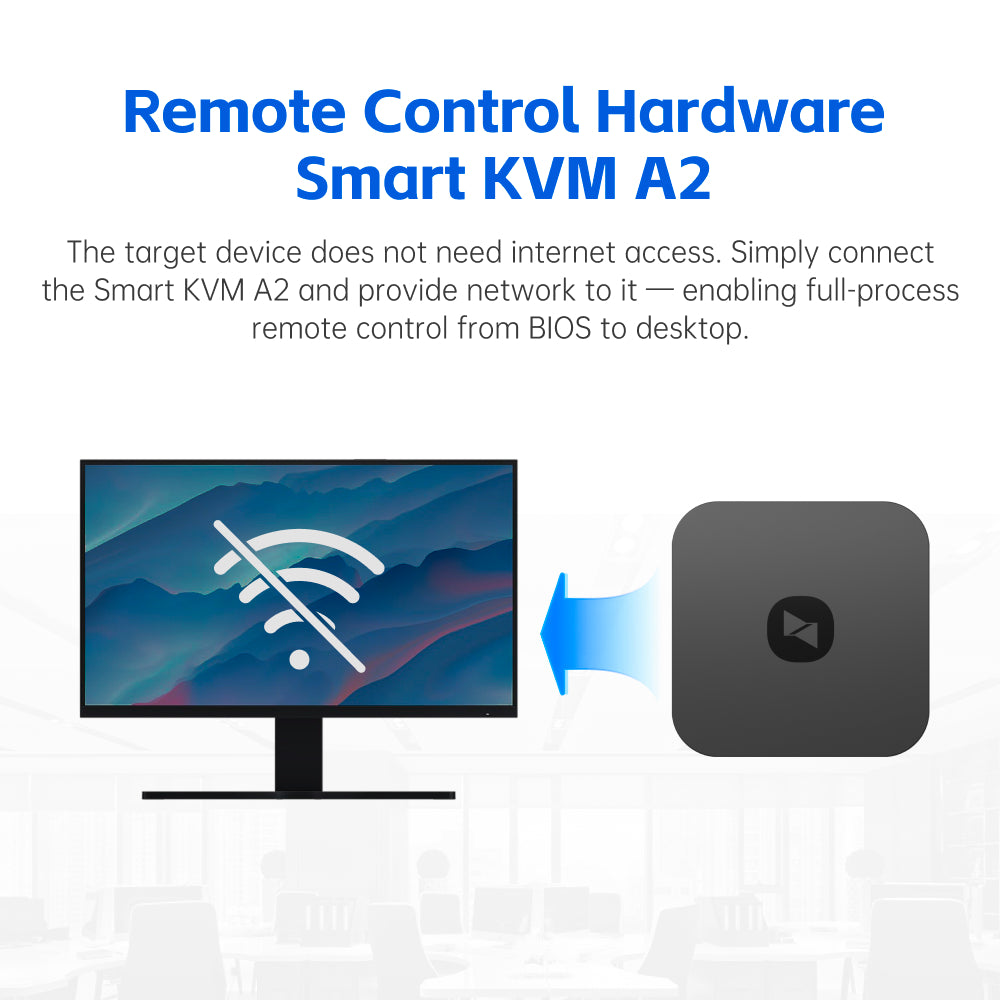

No network on the controlled device? No problem. Just plug in the AweSun A2 device and connect it to the internet, you’ll get seamless remote control from BIOS to desktop, anytime, anywhere.

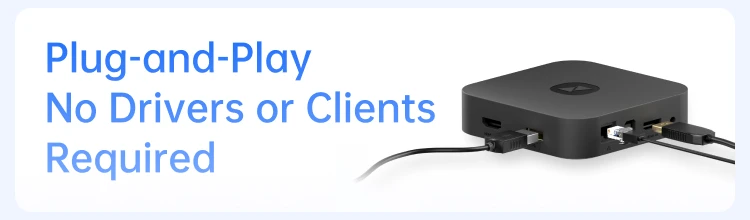

Plug-and-Play, No Drivers or Clients Required
No network on the controlled device?
No problem. Just plug in the AweSun A2 device and connect it to the internet, you’ll get seamless remote control from BIOS to desktop, anytime, anywhere.
HD Visual Output
Supports special resolutions for medical and industrial equipment; compatible with H D M I-to-VGA converters.

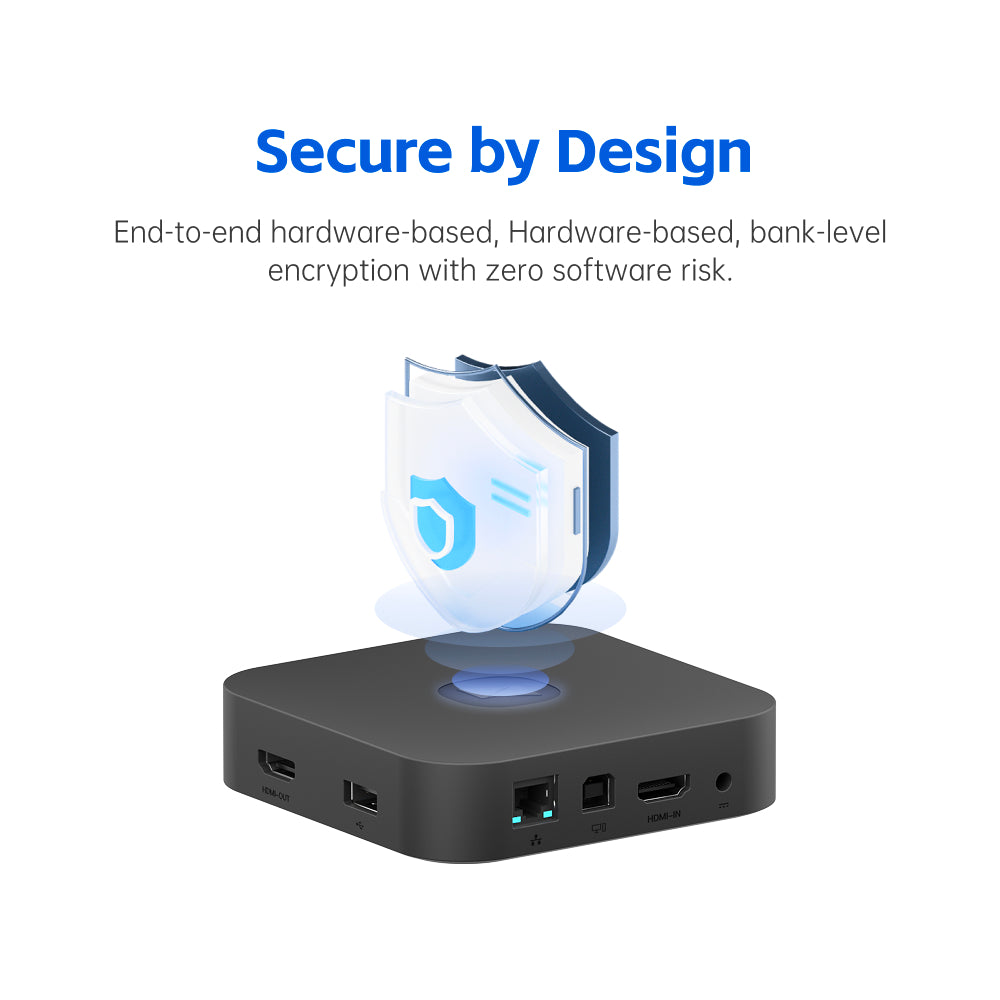

Bank-Level Data Encryption
End-to-end encryption with multi-factor authentication ensures financial-grade security.
Prevent Data Leakage
No software installation required on the controlled device. File transfers are disabled to ensure data never leaves the local machine.
Multi-device Remote Control
Connect with a KVM switch (sold separately) to manage multiple hosts through a single interface.
Cross-Platform Compatibility
Fully compatible with Android, Linux, macOS, and Windows—works in any software or OS environment.
Application Scenarios
Remote Medical Services
A plug-and-play remote medical platform, no third-party software installation required. Supports multi-party doctor access for real-time viewing and control of medical equipment, improve interaction and efficiency in remote consultations. Highly adaptable and secure, compatible with various operating systems and processor architectures, while ensuring complete network isolation for medical devices during remote control.
Remote Data Center Maintenance
* Control multiple servers via KVM switch;
* Support remote troubleshooting, BIOS access, and OS installation during system crashes;
* Support browser-based remote control with AweSun domain.
Industrial Equipment Remote Monitoring
* Remotely operate and check equipment status via AweSun;
* Pair with AweSun USB camera for real-time monitoring of industrial PCs and CNC machines anytime, anywhere.
Secure Offline Remote Development
* With AweSun Smart KVM A2, developers can safely access office PCs from anywhere—no internet needed on the target device.
* Modify code, fix bugs, and stay on schedule, all with financial-grade encryption to ensure data security.
Recommended Pairing & Smart Operation

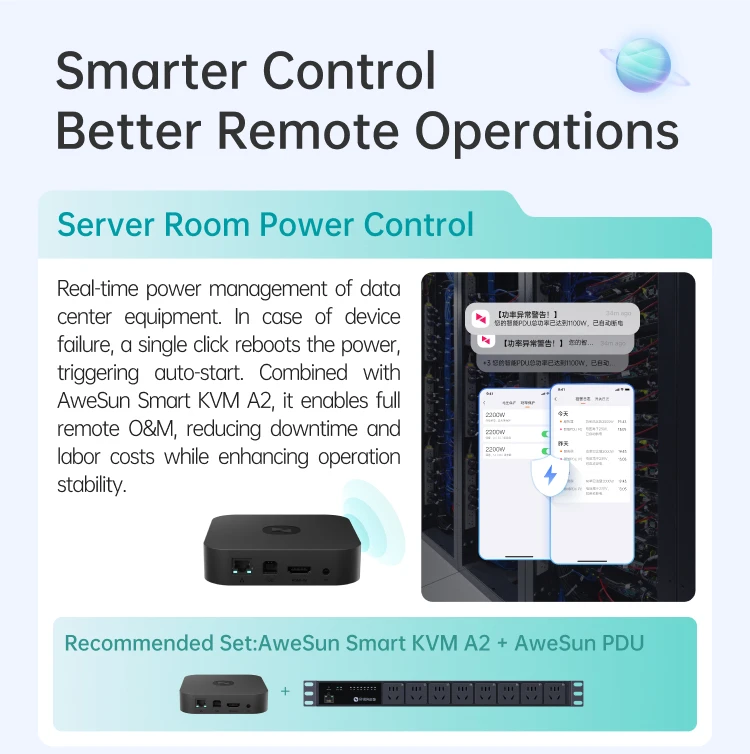

For Server Room Power Control
Real-time power management of data center equipment. In case of device failure, a single click reboots the power, triggering auto-start. Combined with AweSun Smart KVM A2, it enables full remote O&M, reducing downtime and labor costs while improve operation stability.
Recommended Paring: AweSun Smart KVM A2 + AweSun PDU

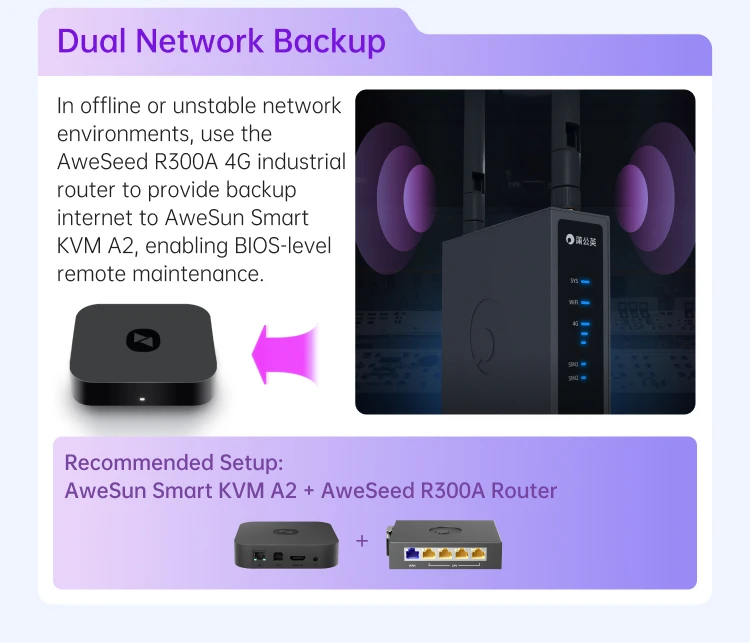

Dual Network Backup
In offline or unstable network environments, use the AweSeed R300A 4G industrial router to provide backup internet to AweSun Smart KVM A2, enabling BIOS-level remote maintenance.
Recommended Paring: AweSun Smart KVM A2 + AweSeed R300A SDWAN 4G Router .
Others Features
VGA Compatibility
Supports VGA via HD-MI converter. Allows high-definition remote control even with VGA interface.
Web Access
No client installation needed. Easily access remote devices anytime via browser.
Multiple Internet Access Modes
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Built-in 4G Module
Built-in 4G mobile network module (external USB modem required). Please contact support for compatible models.

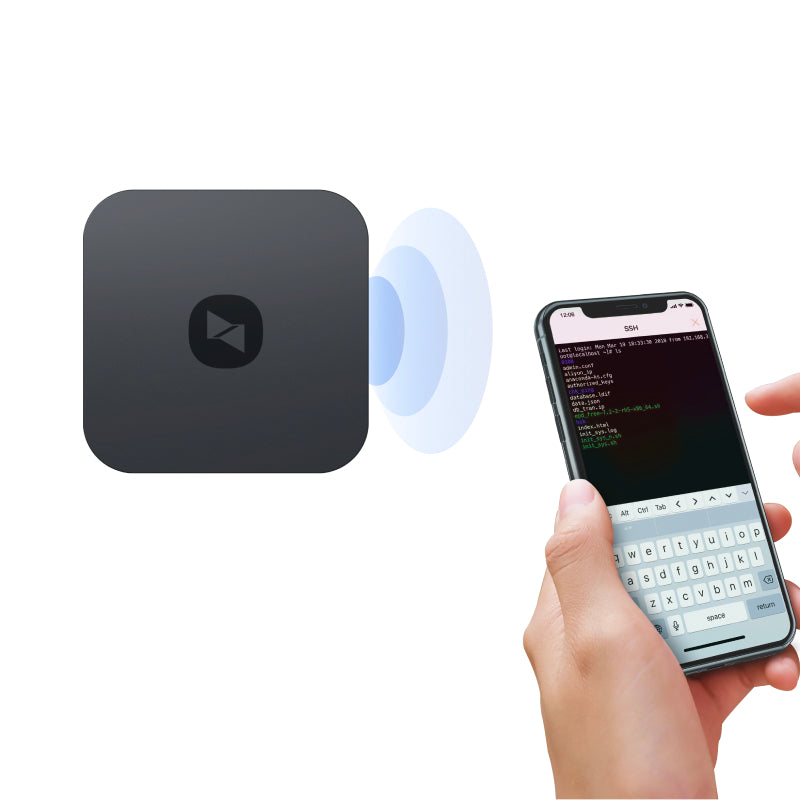

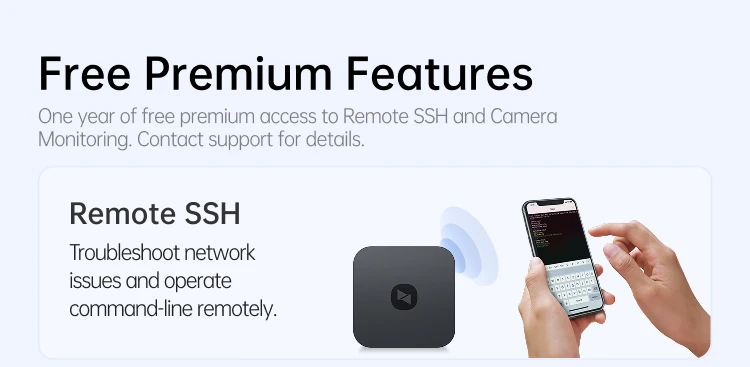

Remote SSH
Troubleshoot network issues and operate command-line remotely.
Remote Camera Monitoring
Pair with USB camera for real-time equipment monitoring via mobile.

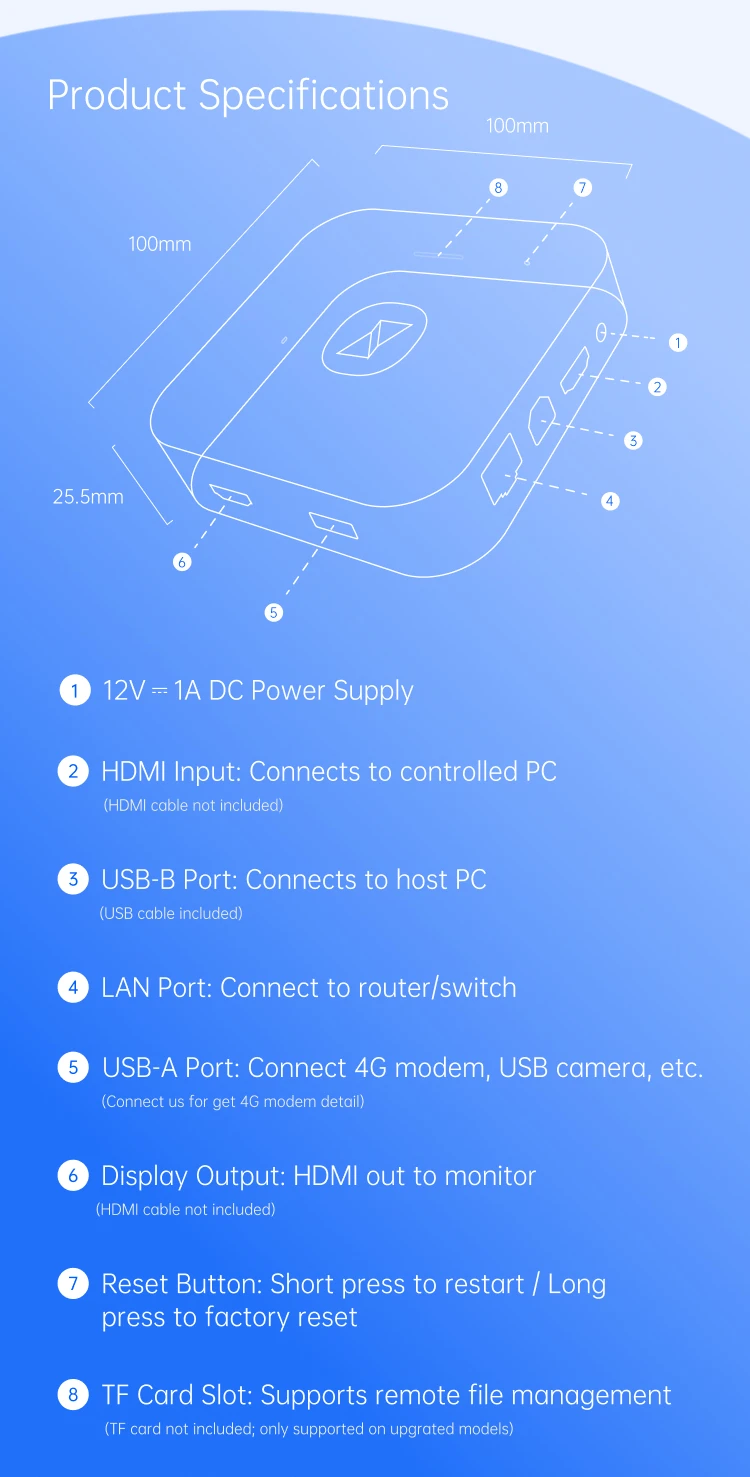

Product Specification

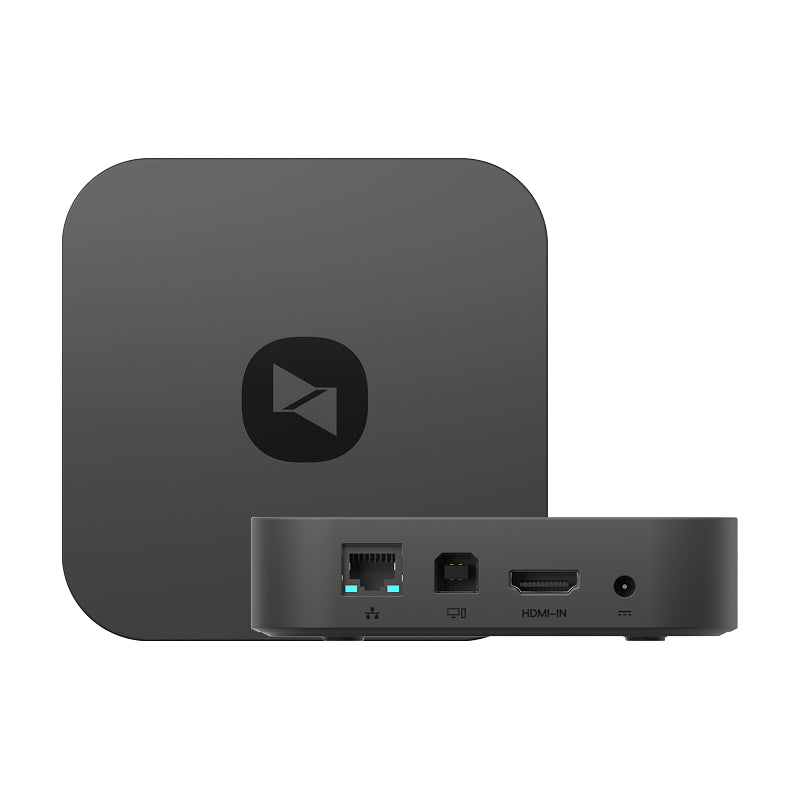

Prots
① Power Supply: 12V-1A DC
② HD MI Input: Connects to controlled PC (HD MI cable not included).
③ USB-B Port: Connects to host PC (USB cable included).
④ LAN Port: Connect to router/switch.
⑤ USB-A Port: Connect 4G modem, USB camera, etc. (Connect us for get 4G modem detail).
⑥ Display Output: HD-MI out to monitor (HD-MI cable not included).
⑦ Reset Button: Short press to restart / Long press to factory reset.
⑧ TF Card Slot: Supports remote file management (TF card not included; only supported on upgrated version).

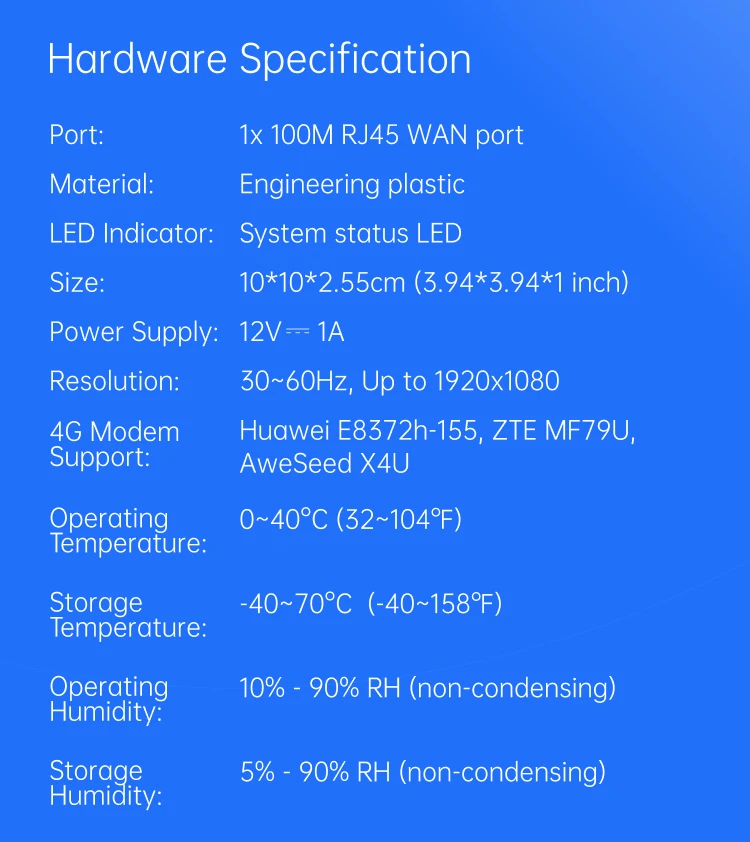

Hardware Specification
Wan Port: 1x 100M RJ45 WAN port
Material: Engineering plastic
LED Indicator: System status LED
Size: 10*10*2.55cm (3.94*3.94*1 inch)
Power Supply: 12V- 1A
Resolution: 30~60Hz, Up to 1920x10804G
Modem Support: Huawei E8372h-155, ZTE MF79U, AweSeed X4U
Operating Temperature: 0~40°C (32~104℉)
Storage Temperature: -40~70°C (-40~158℉)
Operating Humidity: 10% - 90% RH (non-condensing)
Storage Humidity: 5% - 90% RH (non-condensing)

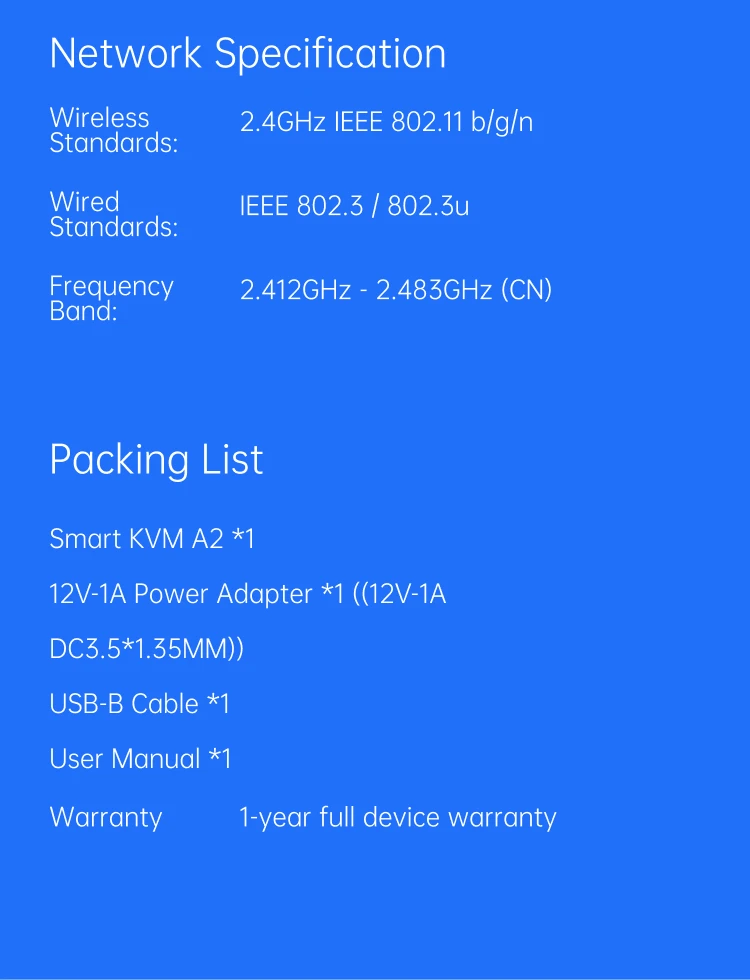

Network Specification
Wireless Standards: 2.4GHz IEEE 802.11 b/g/n
Wired Standards: IEEE 802.3 / 802.3u
Frequency Band: 2.412GHz - 2.483GHz (CN)
